Changzhou Tinghao Electronic Co., Ltd.

Product Description

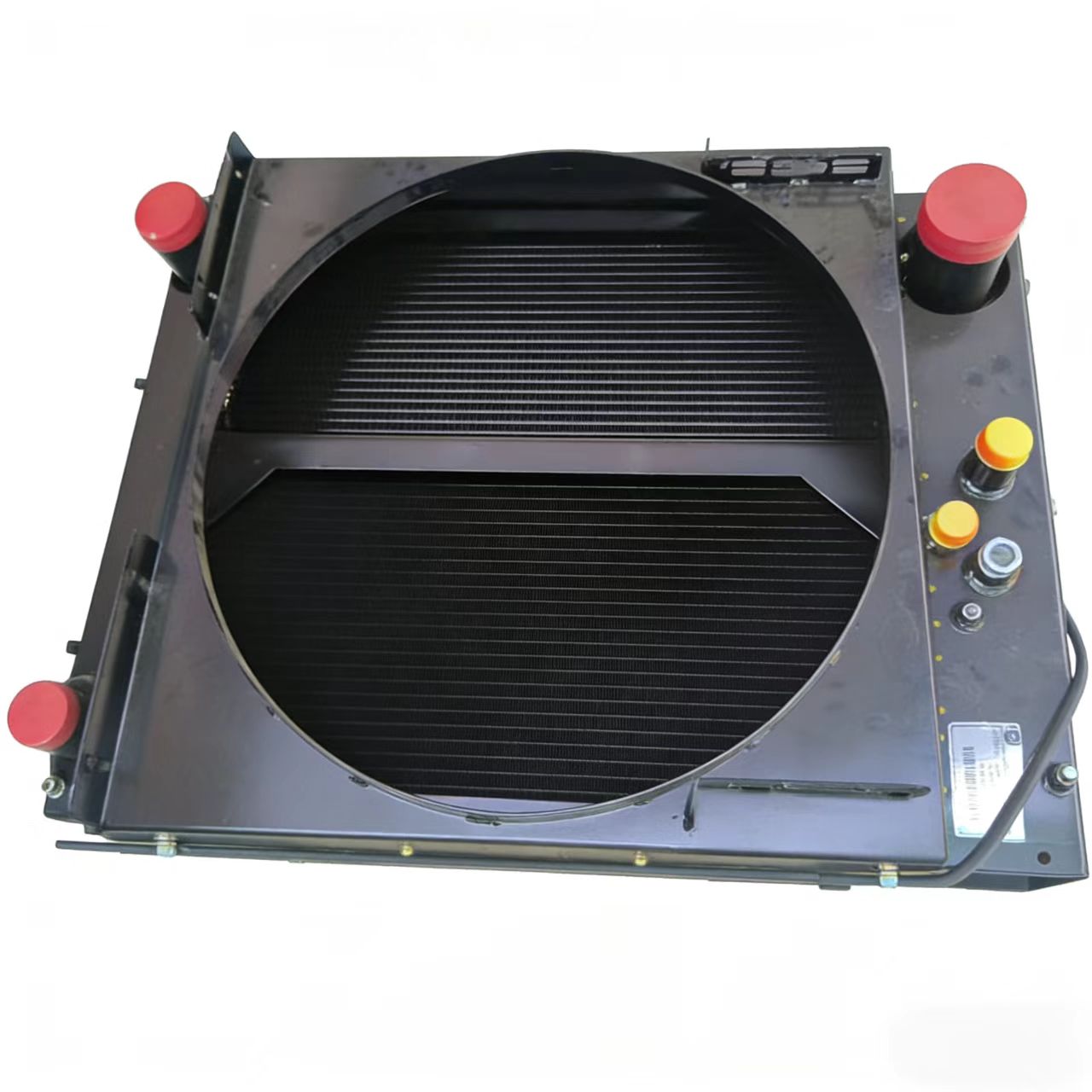

P-Bar design for high volume OE Mobile Applications

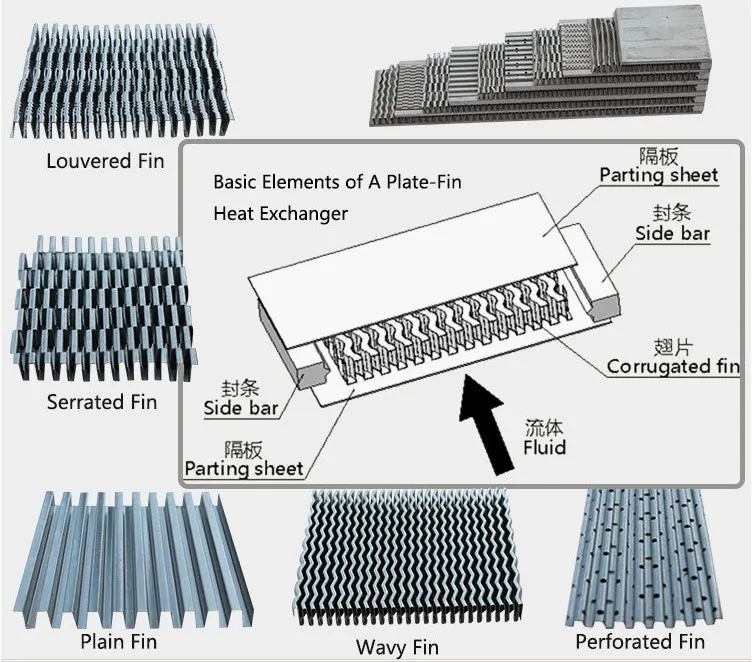

Structure: Air cooled "plate and bar" design(P-Bar design)

Incorporates radiator, hydraulic oil and charge air coolers into one package

Material: Aluminum alloy

Application: Construction Machinery, such as excavator, roller, bulldozer, paver, pulverizer, etc

Features:

-Modules are pressure and leak tested, assembled and packaged

-prototypes and production products can be completed in a short lead time.

-production core geometries for radiators(water-air), oil coolers(oil-air), air coolers for engines(CAC). Air coolers for compressors(air-air), air-oil welded combos.

-P-Bar complete cooling packages can be equipped with fan, motor, finger guard, etc

Advantages:

-Superior performance

Aluminum, as up to 25% higher heat transfer capacity in comparison to traditional cooper/brass cooling material

-Rugged, Lightweight and compact

-Air-side fin design minimizes fouling and static pressure ensuring long-term reliable performance

-Welded aluminum fittings/ports and manifolds ensure structural integrity

-Standard prots-SAE, NPT AND BSPP ports available

-Customized units are available to meet your specific performance requirements.
